Aliyun ECS Deployment Guide: Docker Compose Single-Container Apps

Applies to: Docker Compose single-container web apps · domestic ECS troubleshooting edition · optional GitHub Actions auto-deploy

Note: This is a generic deployment guide. Project names, directories, and repos in examples are placeholders. This site, qianna-site, is deployed on Vercel + Supabase—not the ECS approach in this article. If you are deploying another Dockerized project, follow the steps below.

0. Before You Start

0.1 What kind of project fits this guide?

This article is not tied to one product. It describes a common way to ship a class of web apps. If your project matches the traits below, you can deploy it with this guide:

• A Dockerfile and compose.yaml (or docker-compose.yml) at the repo root
• Frontend and backend served from one container, usually on a single port (e.g. 8000)
• Secrets, database, and third-party APIs configured via .env.docker / .env
• On domestic ECS, you need to work around slow or timed-out pulls from Docker Hub, PyPI, or npm

Typical examples: internal tools, AI-assisted apps, admin dashboards, training/content platforms.

0.2 Recommended deployment path

Recommended: Linux (preinstalled) → install Docker → run the app with docker compose

Optional extension: Linux + Docker → Baota/Nginx reverse proxy to the app port → bind a domain and HTTPS

Not covered here: skipping Docker and hosting a frontend dist on Baota while running the backend manually (split deployment, usually higher maintenance cost)

When you buy Aliyun ECS, Alibaba Cloud Linux is already installed—you do not need to install Linux separately.

Part 1 · Purchase and log in to ECS

1.1 Buy a cloud server

1. Open the Aliyun ECS product page: https://www.aliyun.com/product/ecs

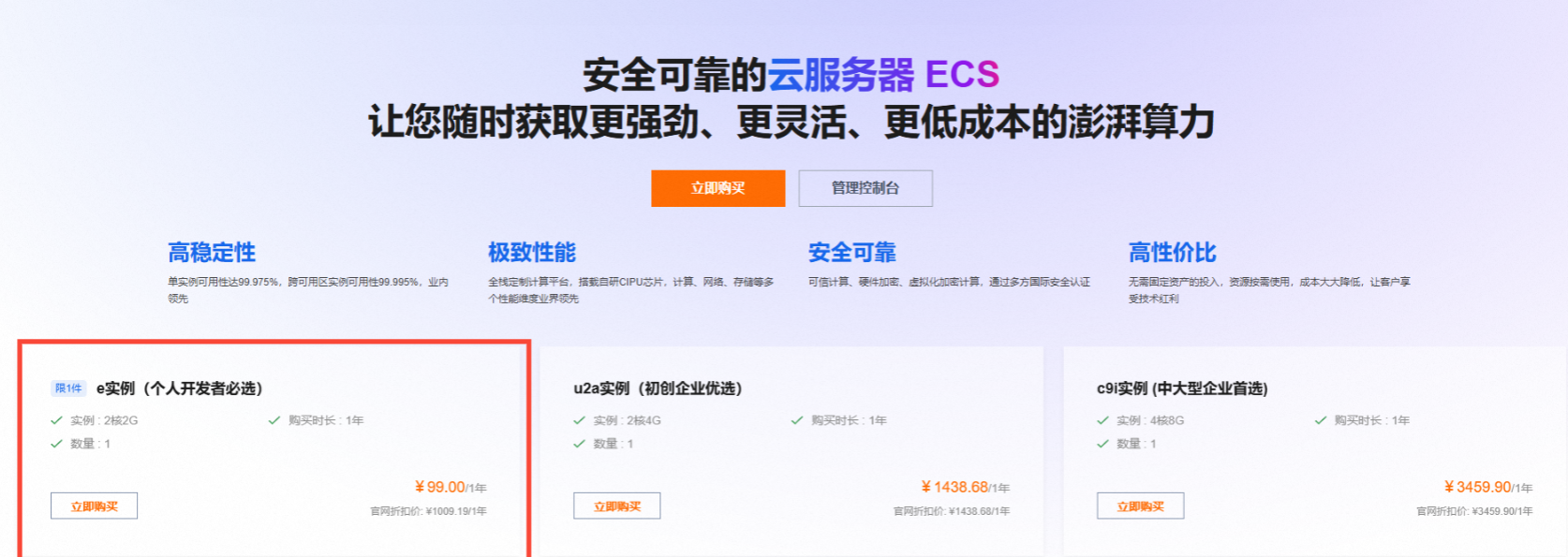

2. Choose the personal developer e instance (example: 2 vCPU / 2 GB; pricing per Aliyun’s page)
3. OS: Alibaba Cloud Linux 3
4. Security group: allow 22 (SSH) at minimum; later add the app port (e.g. 8000); after binding a domain, add 80/443

1.2 Connect with Workbench

1. ECS console → instance list

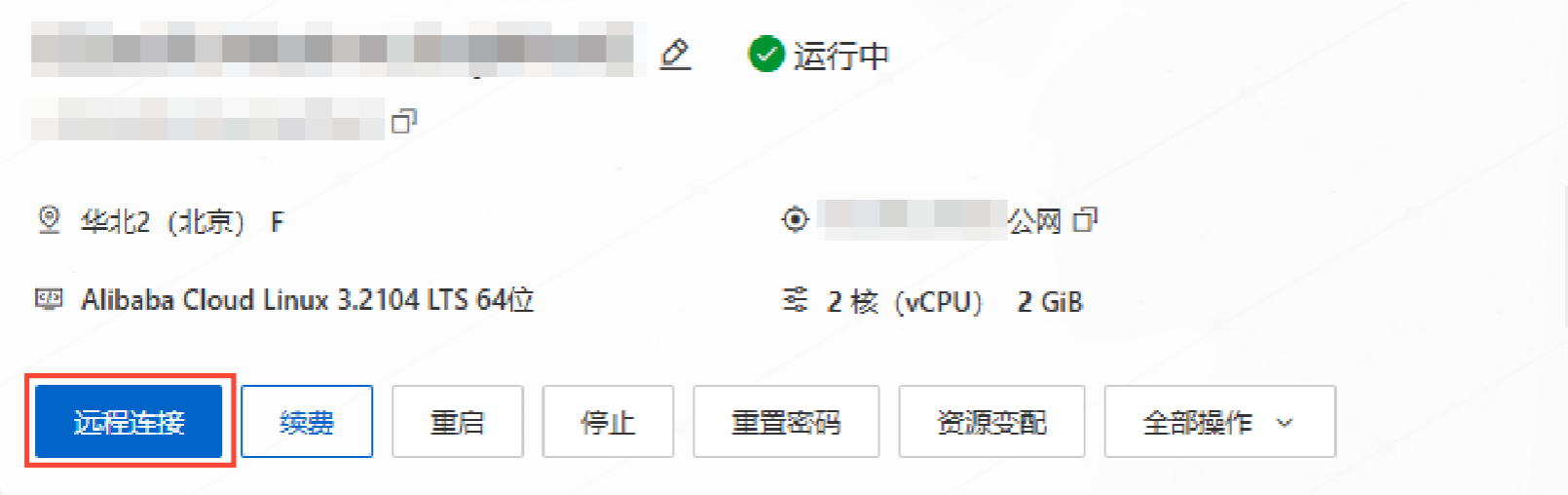

2. Click Connect

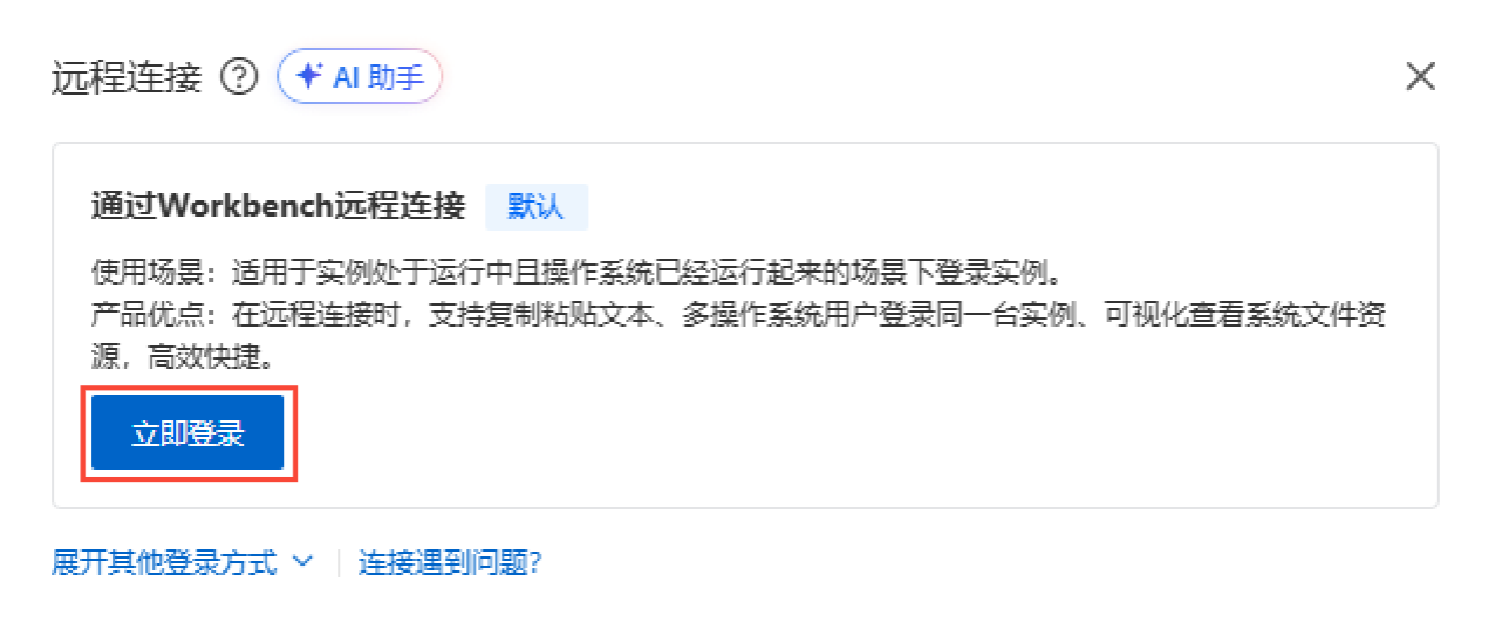

3. In the dialog, choose Workbench → Log in now

After login, the prompt looks like: [root@iZxxxx ~]#

Part 2 · Install Docker (steps 1–5)

Run these commands in Workbench one line at a time: copy the full line → Enter → wait until it finishes before the next.

Step 1 · Confirm OS version

cat /etc/os-release

Expect Alibaba Cloud Linux 3 with platform:al8.

Step 2 · Install Docker CE

2.1 Try Aliyun’s built-in repo first (may fail)

dnf install -y docker docker-compose-plugin

If you see No match for argument: docker-compose-plugin, switch to the Docker CE repo.

2.2 Add the Docker CE repo

wget -O /etc/yum.repos.d/docker-ce.repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
sed -i 's/$releasever/8/g' /etc/yum.repos.d/docker-ce.repo

Why change releasever to 8: Alibaba Cloud Linux 3 reports version 3, but Docker packages are organized under CentOS 8.

2.3 Install Docker + Compose plugin

dnf install -y docker-ce docker-ce-cli containerd.io docker-compose-plugin

Step 3 · Start and verify

systemctl start docker
systemctl enable docker
docker --version
docker compose version

Step 4 · Configure a Docker registry mirror

mkdir -p /etc/docker
cat > /etc/docker/daemon.json << 'EOF'
{
  "registry-mirrors": [
    "https://docker.m.daocloud.io"
  ]
}
EOF
systemctl daemon-reload
systemctl restart docker
docker info | grep -A 3 "Registry Mirrors"

You must see docker.m.daocloud.io for the mirror to be active.

Part 3 · Deploy the app (steps 6–10)

Step 6 · Get the code

Option A: git clone (when GitHub is reachable)

dnf install -y git
cd /opt
git clone <git-repo-url>
cd /opt/<project-dir>

Direct GitHub access from domestic ECS often times out—use Option B if clone fails.

Option B: local zip + Workbench upload (recommended on domestic ECS)

On the machine where your repo lives:

git archive --format=zip -o app.zip HEAD

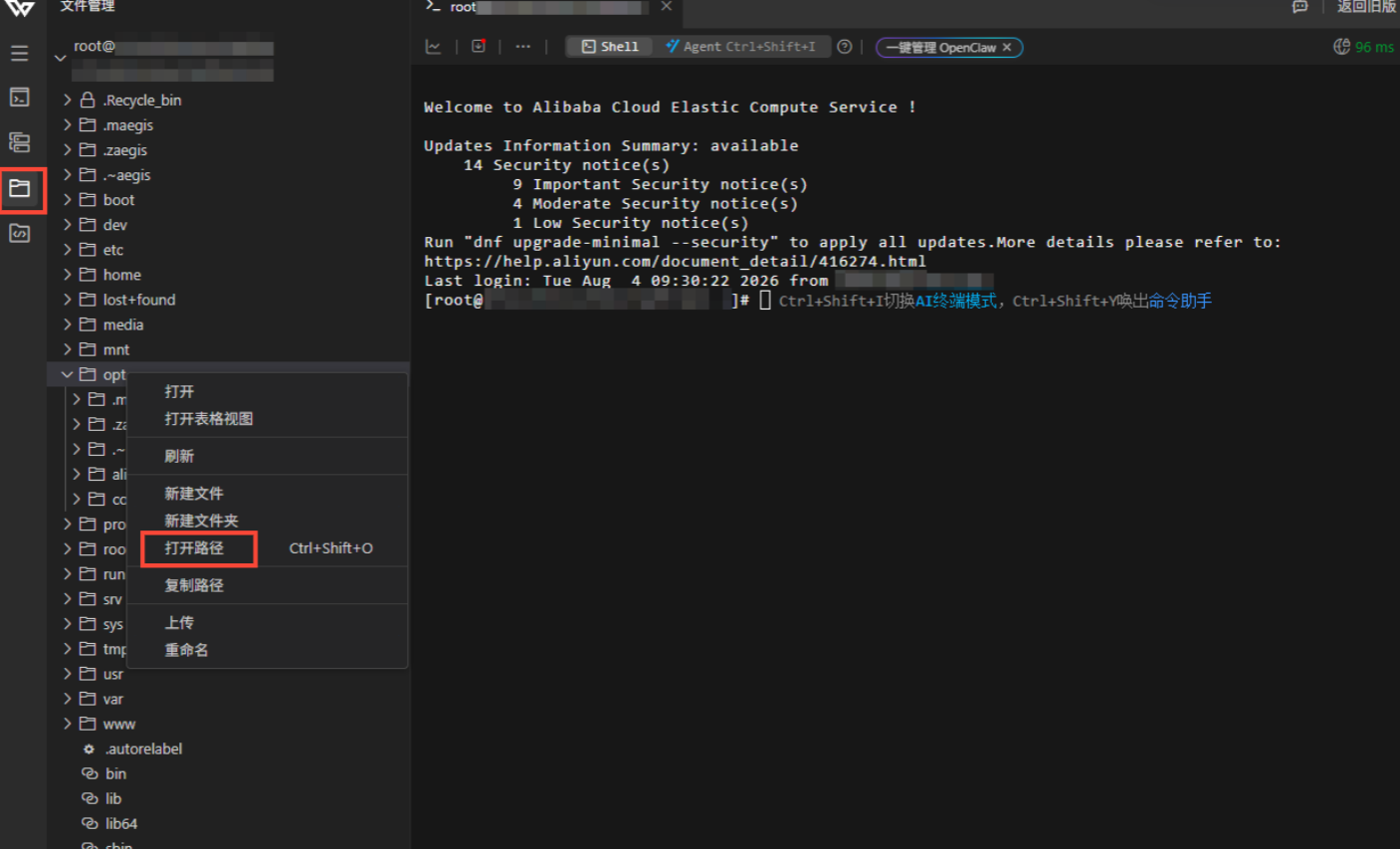

In Workbench’s file manager, go to /opt → right-click → upload → select app.zip

Confirm size: ls -lh /opt/app.zip (must not be 0)

cd /opt
mkdir -p <project-dir>
unzip -o app.zip -d <project-dir>
cd /opt/<project-dir>
ls

You should see Dockerfile and compose.yaml. If unzip is missing: dnf install -y unzip

Step 7 · Pull base images and patch Dockerfile (required in China)

For Python + Node multi-stage builds, pre-pull images and rewrite FROM lines as needed.

cd /opt/<project-dir>
# Adjust to match your Dockerfile base images
docker pull docker.m.daocloud.io/library/python:3.12-slim-bookworm
docker pull docker.m.daocloud.io/library/node:20-bookworm-slim
sed -i 's|FROM node:|FROM docker.m.daocloud.io/library/node:|' Dockerfile
sed -i 's|FROM python:|FROM docker.m.daocloud.io/library/python:|' Dockerfile
# Python projects: add Tsinghua pip mirror
sed -i 's|RUN pip install --no-cache-dir -r requirements.txt|RUN pip install --no-cache-dir -r requirements.txt -i https://pypi.tuna.tsinghua.edu.cn/simple --trusted-host pypi.tuna.tsinghua.edu.cn --default-timeout=300 --retries=10|' Dockerfile
grep -E '^FROM |pip install' Dockerfile

Step 8 · Configure environment variables

Copy .env.docker.example (or .env.example) to .env.docker and fill in values per comments.

cd /opt/<project-dir>
cp .env.docker.example .env.docker
SECRET=$(openssl rand -hex 32)
# Variable names depend on your project
sed -i "s|AUTH_JWT_SECRET=replace-with-a-long-random-secret|AUTH_JWT_SECRET=$SECRET|" .env.docker
sed -i "s|APP_BASE_URL=.*|APP_BASE_URL=http://your-public-ip:<port>|" .env.docker
grep -E '^(AUTH_JWT_SECRET|APP_BASE_URL)=' .env.docker

Security

• Keep JWT, database, and third-party API secrets safe—never leak them or commit them to a public repo
• Payment, email, and other unused integrations can stay as example values
• After binding a domain, set APP_BASE_URL to https://your-domain

Step 9 · Build and start

First build takes about 15–30 minutes. Use nohup so Workbench disconnects do not stop the build.

cd /opt/<project-dir>
nohup docker compose up --build -d > /tmp/<app-name>-build.log 2>&1 &
tail -f /tmp/<app-name>-build.log

• Success: log shows Container <container-name> Started (or similar healthy state)
• Ctrl+C only exits log follow; build keeps running
• After reconnect: tail -30 /tmp/<app-name>-build.log

Step 10 · Security group and verification

After the container is up, open the app port (e.g. <port>) in the Aliyun security group so browsers can reach it.

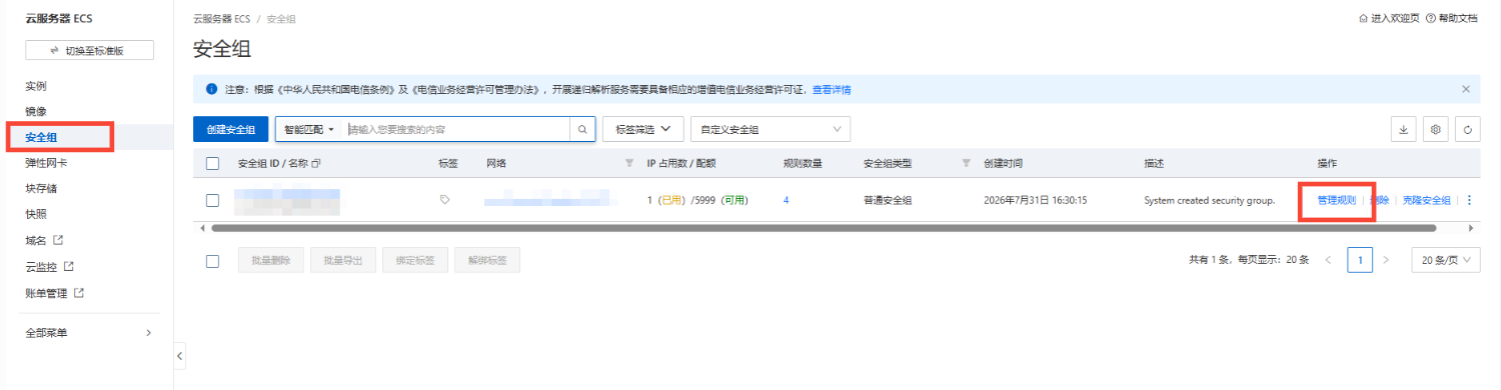

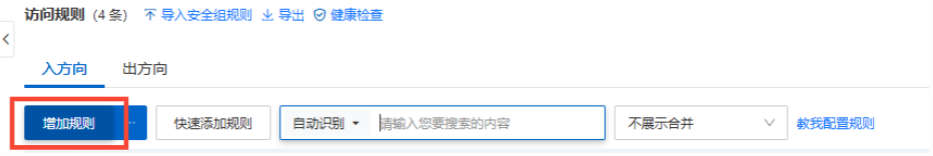

1. ECS console → Security group → group linked to your instance → Manage rules

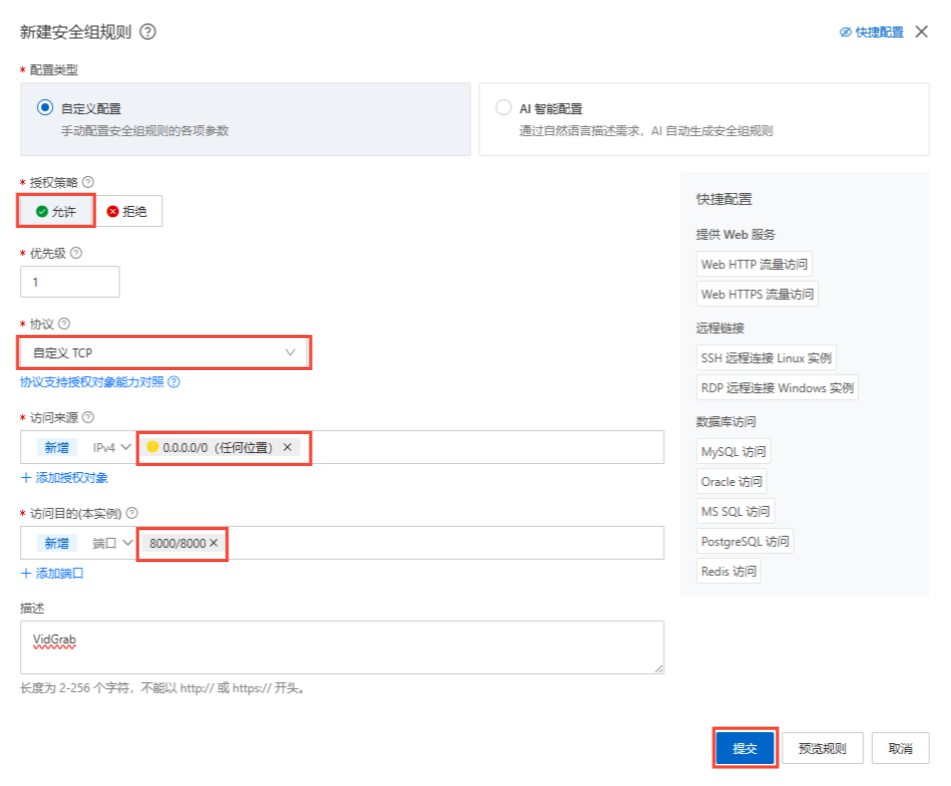

2. Inbound → Add rule
3. Allow; custom TCP; port <port>/<port>; source 0.0.0.0/0

Security: 0.0.0.0/0 is fine for first verification. For long-term use, restrict source IPs, move to domain + HTTPS, and consider WAF/firewall rules.

docker compose -f /opt/<project-dir>/compose.yaml ps
curl -s http://127.0.0.1:<port>/api/health

Health check path varies by project: /api/health, /health, or /.

Part 4 · Day-to-day operations

cd /opt/<project-dir>
docker compose ps
docker compose logs -f
docker compose restart
docker compose down        # do not add -v

Part 5 · Share on the public internet

After deploy, share http://your-public-ip:<port>/ with testers. Public IP is on the ECS instance detail page.

Before sharing: no default weak test passwords; no debug endpoints exposed. For production, prefer domain + HTTPS (next section).

Part 6 · Domain and Baota reverse proxy (optional)

Once IP + port works, install Baota panel on the same ECS to serve the app on a domain with HTTPS. The app still runs under docker compose; Baota forwards domain traffic to the container port.

6.1 DNS

1. At your registrar, add an A record for @ (or www) pointing to your ECS public IP
2. Wait for propagation (minutes to hours); verify with ping your-domain in a terminal

6.2 Security group: open 80 / 443

ECS console → Security group → inbound rules:

After reverse proxy is set up, the app port (e.g. 8000) need not be public—ECS internal access is enough.

6.3 Baota: site + reverse proxy

1. Install Baota (official install script), log in
2. Website → Add site → enter domain; PHP: static only or none
3. Open the site → Reverse proxy → Add reverse proxy
   • Target URL: http://127.0.0.1:<port> (must match compose.yaml port mapping)
   • Send domain: $host (default)
4. SSL → Let's Encrypt → issue cert and enable Force HTTPS

6.4 Sync app config

cd /opt/<project-dir>
sed -i "s|APP_BASE_URL=.*|APP_BASE_URL=https://your-domain|" .env.docker
docker compose up -d --force-recreate

Open https://your-domain in a browser. Blank page or 502: on the ECS terminal run curl http://127.0.0.1:<port>/ to confirm the container, then check the proxy target port.

Part 7 · Third-party APIs (optional)

If the app uses LLM, SMS, object storage, etc., append keys to .env.docker and recreate the container.

cd /opt/<project-dir>
vi .env.docker
# Append variables, e.g.:
# DEEPSEEK_API_KEY=sk-your-key
# DASHSCOPE_API_KEY=sk-your-key
docker compose up -d --force-recreate
curl -s http://127.0.0.1:<port>/api/health

After editing .env.docker, you must use --force-recreate or the container keeps old env vars.

Part 8 · GitHub Actions auto-deploy (optional)

After the first manual deploy, pushing to main can rsync code and rebuild with docker compose on the server.

8.1 Push workflow from your local repo

cd <local-project-dir>
git add .github/workflows/deploy.yml scripts/deploy-ecs.sh
git commit -m "add GitHub Actions ECS deploy"
git push origin main

8.2 Create deploy user + SSH key on the server

useradd -m -s /bin/bash deploy
usermod -aG docker deploy
chown -R deploy:deploy /opt/<project-dir>
dnf install -y rsync

On your local machine (PowerShell), generate a key and add the public key to /home/deploy/.ssh/authorized_keys:

ssh-keygen -t ed25519 -C "github-actions-deploy" -f $env:USERPROFILE\.ssh\github_actions_deploy -N '""'

Never commit the private key to Git or share it with others.

8.3 GitHub Secrets

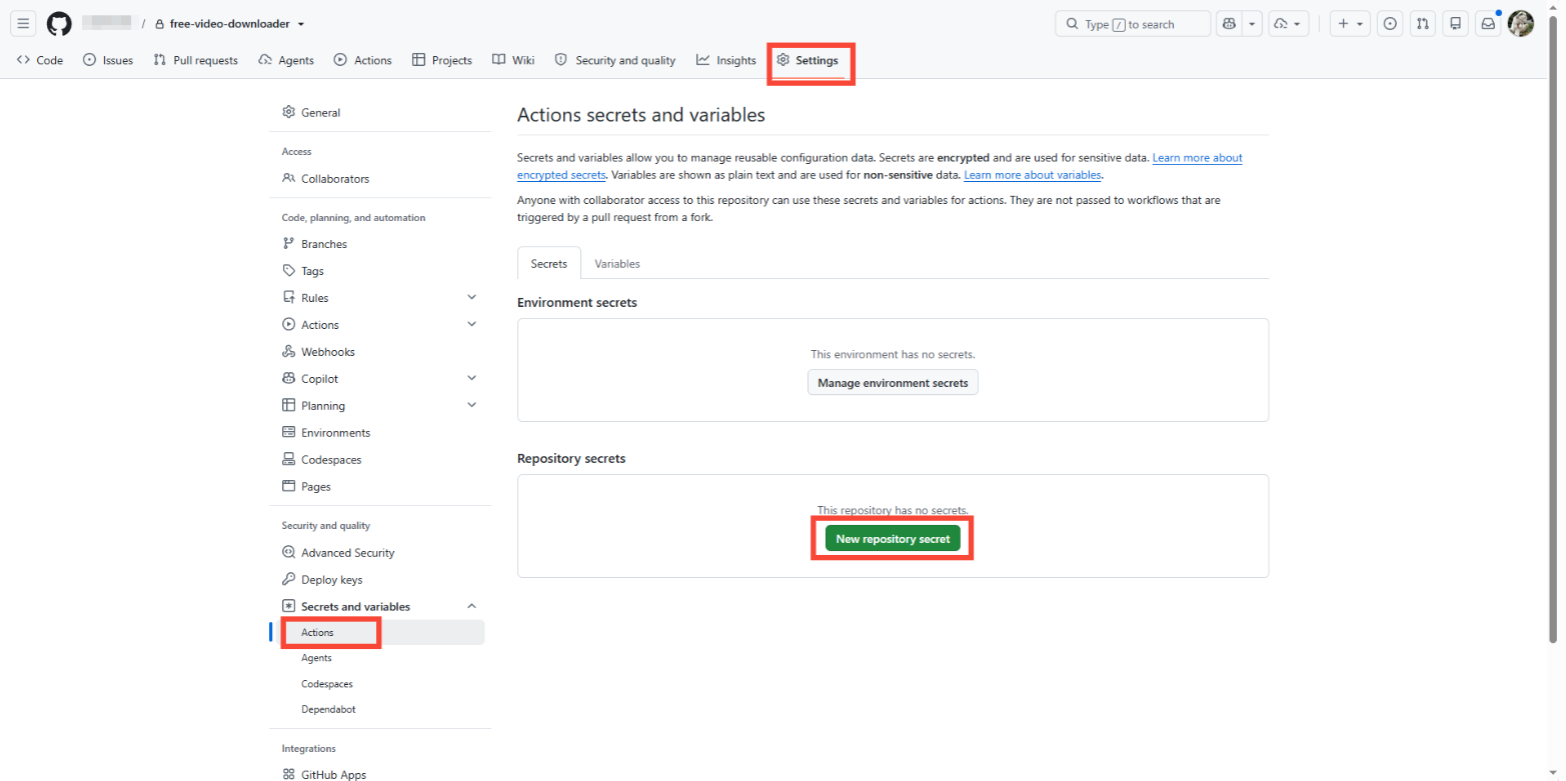

Repo → Settings → Secrets and variables → Actions → New repository secret

8.4 Manually trigger Actions to verify

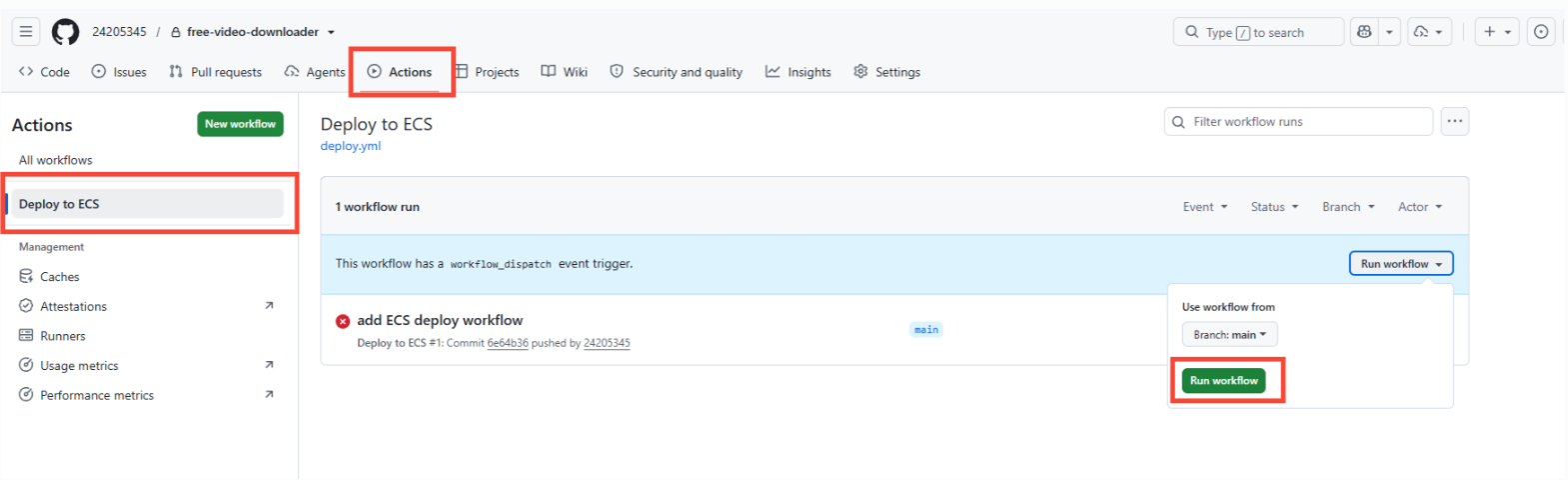

Actions → your deploy workflow → Run workflow → branch main → Run workflow

docker compose -f /opt/<project-dir>/compose.yaml ps
curl -s http://127.0.0.1:<port>/api/health

Later updates: git push origin main

Appendix A · Placeholder reference

The body uses placeholders so you can reuse this guide across projects. Example values below are fictional—replace with your own:

Replace placeholders in the body (e.g. <port>, <project-dir>) with values from this table. For another project, change the instance values only—the step order stays the same.

Appendix B · Common errors
